Industrial Equipment Catalog

Precision Equipment &
Automated Hardware Catalog.

Engineered to the highest industrial tolerances. Four-way shuttles, high-speed belt & modular conveyors, pallet roller systems, vertical continuous elevators, and robotic palletization.

AS/RS Grids

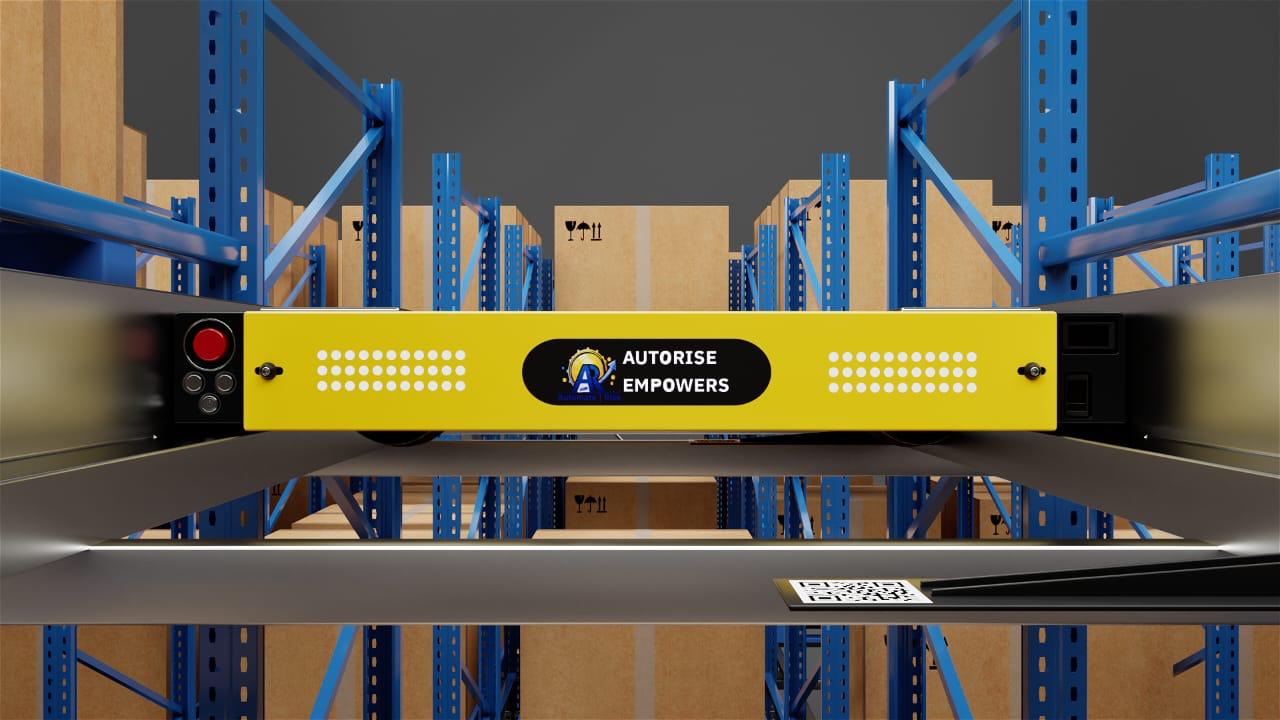

Four-Way Shuttle (4-Way Shuttle)

Omnidirectional shuttle navigation in high-density storage grids, moving forward, sideways, and vertically with lifts to maximize cubic warehouse capacity.

Technical Specifications

Kinematics Forward, Sideways, Vertical Lifts
Rated Capacity 500 ~ 1500 kg/pallet
Max Speed (Unloaded) Up to 2.0 m/s (120 m/min)
Max Speed (Loaded) Up to 1.5 m/s (90 m/min)
Switching Time ≤ 1.2 seconds
Positioning Accuracy ± 2.0 mm (Optical Matrix)
Power System Supercapacitor / LiFePO4 Battery
Operating Temp -30°C to +45°C
Control Architecture Industrial 5GHz Wi-Fi / WCS Gateway
Four-Way Shuttle (4-Way Shuttle)
Conveyors

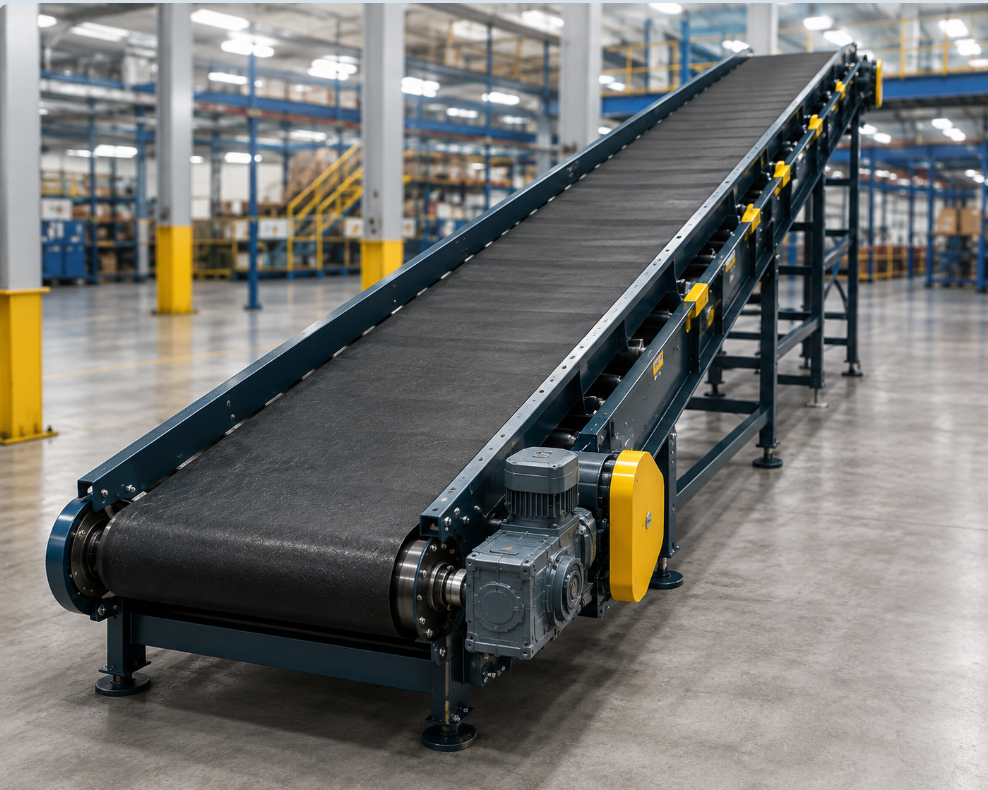

Belt Conveyor

Smooth and reliable transport of varied cargo with high durability, low noise levels, and customizable incline configurations.

Technical Specifications

Speed 30 ~ 60 m/min
Tilt Angle Normal ≤17° / Cold Storage ≤14°
Body Thickness ≥3.0 mm High Quality Carbon Steel Plate
Lengths 3000 / 6000 / 9000 / 12000 / 15000 / 18000 mm
Widths 400 / 600 / 800 / 1000 / 1200 mm
Dynamic Load 60 kg/m²
Static Load 150 kg/m²
Noise Level ≤72 dB(A) Stand-alone / ≤78 dB(A) Overall
Drive Direct-coupled helical gearmotor / Motorized drum (0.75 ~ 5.5 kW)
Belt Conveyor
Conveyors

Modular Conveyor

Crafted from high-strength materials in modular assemblies for high-throughput parcel sorting at 6,000 to 8,000 pcs/hour.

Technical Specifications

Speed 1.0 ~ 1.5 m/s
Sorting Efficiency 6,000 ~ 8,000 pcs/h
Cargo Size 100x100x15 to 550x550x550 mm
Cargo Weight 0.1 ~ 60 kg
Belt Widths 481 / 684 / 887 / 1090 / 1293 / 1496 / 1625 mm
Power Max 7.5 kW (400V)
Temperature -10°C to 40°C
Drive Positive Sprocket Engagement (POM Acetal Links)
Modular Conveyor
Conveyors

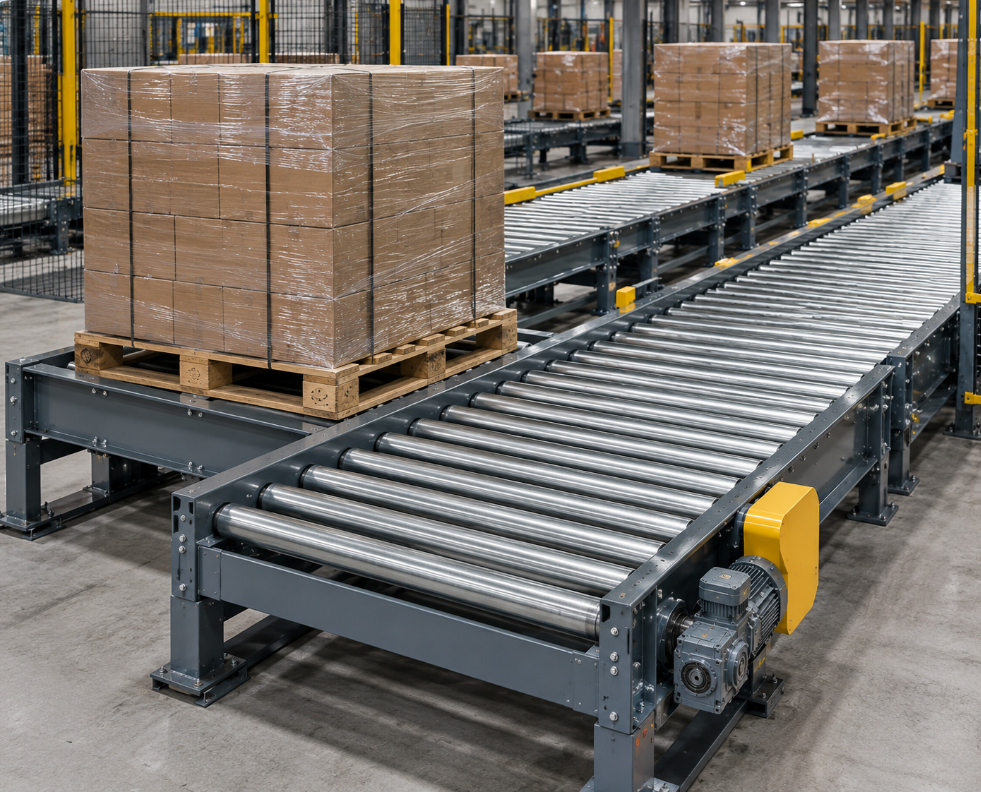

Pallet Roller Conveyor

Heavy-duty roller beds engineered for robust pallet loads up to 1,500 kg per pallet with zero-pressure accumulation capabilities.

Technical Specifications

Speed 12 ~ 20 m/min
Pallet Weight ≤ 1500 kg/pallet
Conveyor Height ≥ 450 mm
Roller Diameters Ø76 mm / Ø89 mm Carbon Steel
Roller Wall Thickness 3.0 mm ~ 4.5 mm
Motor Power 0.75 ~ 1.5 kW SEW Helical Gearmotor
Drive Transmission Precision Duplex Roller Chain (Tangential / Loop)
Control Zone Zero-Pressure Accumulation (ZPA)
Pallet Roller Conveyor
Conveyors

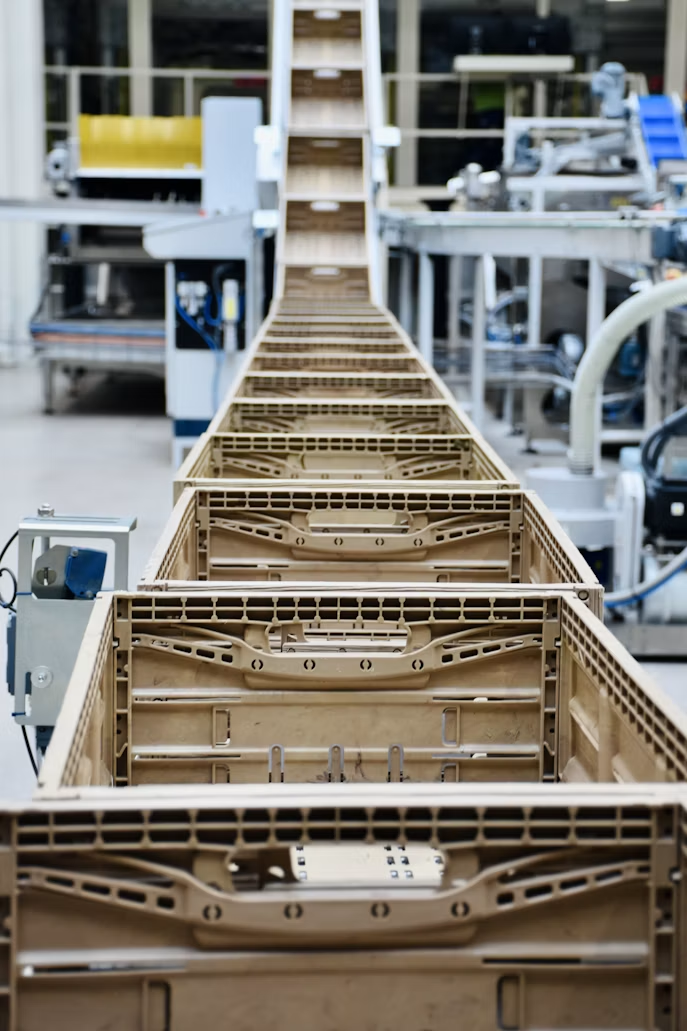

Tote Conveyor

High-speed roller and belt conveyance tailored for plastic totes, cartons, and small bins with zero-pressure accumulation.

Technical Specifications

Speed 15 ~ 35 m/min (Up to 60 m/min on demand)
Payload Capacity ≤ 50 kg/tote
Roller Diameter Ø50 mm Precision Steel / PVC Coated
Standard Widths 400 / 600 / 800 mm
Drive Technology 24V / 48V DC Brushless Motorized Drive Roller (MDR)
Zone Logic Intelligent Zero-Pressure Accumulation (ZPA)
Energy Efficiency Run-on-Demand Sleep Mode (Up to 60% Energy Savings)
Tote Conveyor
Conveyors

Chain Conveyor

Double and triple strand chain conveyor systems built for ultra-heavy pallet transport and cross-bay industrial transfer.

Technical Specifications

Speed 12 ~ 18 m/min
Capacity ≤ 2000 kg/m (Up to 3000 kg per pallet)
Strand Configuration 2-Strand / 3-Strand / 4-Strand Heavy Carbon Steel
Drive Unit High-Efficiency SEW Helical-Bevel Gearmotor (1.5 ~ 4.0 kW)
Chain Pitch 3/4 inch (12B) / 1 inch (16B) Hardened Steel Chains
Wear Guide Ultra-High-Molecular-Weight Polyethylene (UHMW-PE)
Frame Construction Heavy Structural Channel Steel (≥5.0 mm)
Chain Conveyor
Conveyors

Pop-up Setter

High-speed pneumatic wheel and roller divert mechanism for 90-degree sorting spurs and bidirectional package transfer.

Technical Specifications

Transfer Speed 30 ~ 60 m/min
Cycle Time ≤ 0.8 seconds per divert
Pneumatic Pressure 0.5 ~ 0.7 MPa
Lifting Stroke 30 ~ 50 mm
Divert Angles 90° Orthogonal / 30° / 45° Skewed
Load Capacity 0.5 ~ 60 kg per carton
Actuation Fast-Response High-Frequency Pneumatic / Servo Actuator
Integration Belt, Modular, and Roller Conveyor Spines
Pop-up Setter
Conveyors

Turntable Conveyor

Motorized rotational platform enabling 0 to 360 degree directional pivoting for heavy pallet handling lines.

Technical Specifications

Rotation Time 90° in 3.0 ~ 4.5 seconds
Rotation Angle 0 ~ 360° Continuous / Reversible
Rated Load Capacity ≤ 1500 kg (Heavy builds up to 2500 kg)
Turntable Diameter 1200 mm ~ 2000 mm
Deck Type Motorized Pallet Roller or 3-Strand Chain Deck
Drive System Heavy-Duty Slew Ring Bearing with Pinion Gearmotor (0.75 ~ 2.2 kW)
Positioning Accuracy ± 1.0 mm with Proximity Deceleration Control
Turntable Conveyor
Vertical Elevators

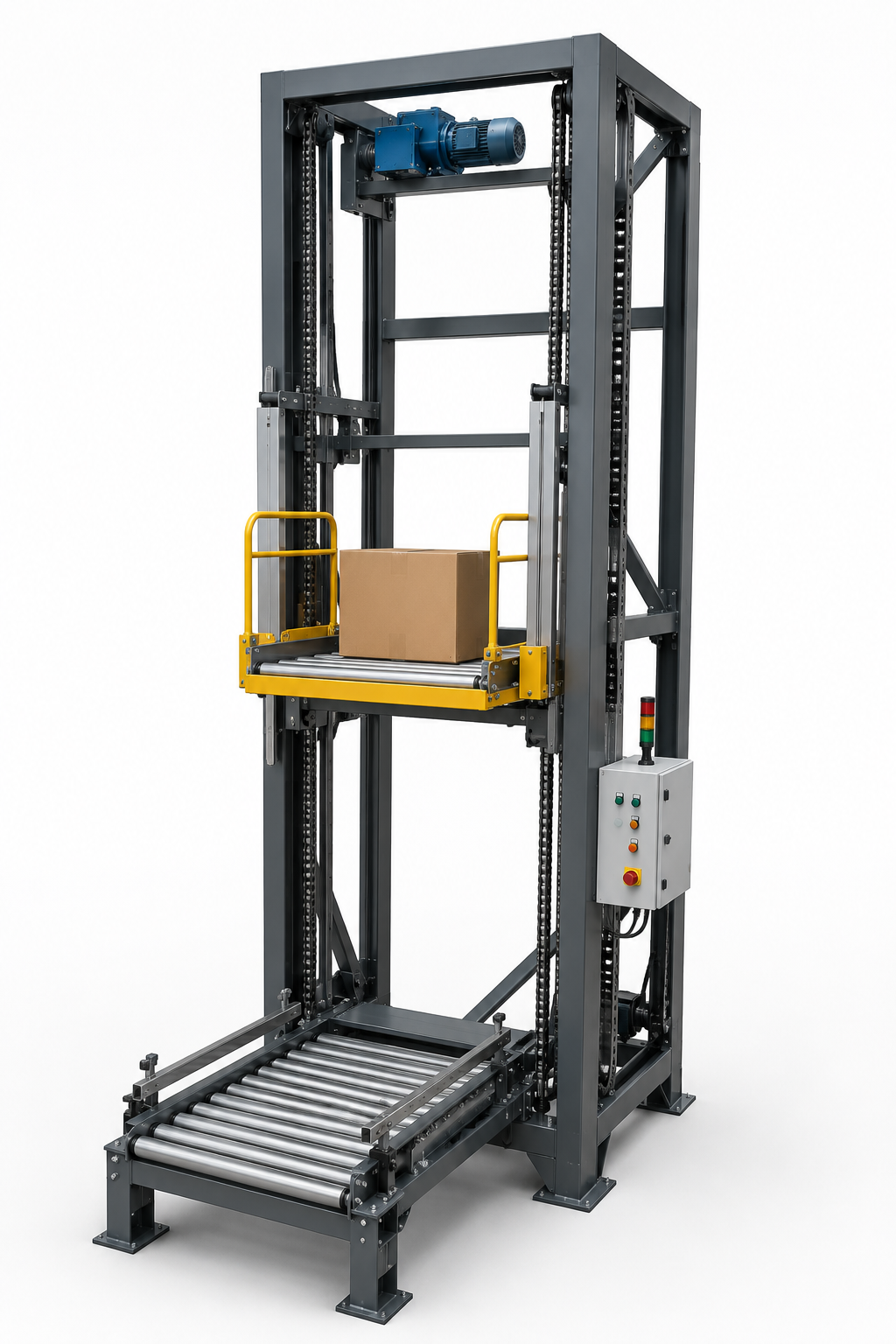

Reciprocating Vertical Conveyor

Vertical platform lifter for multi-floor warehouse elevation changes up to 30 meters with heavy payloads up to 2,000 kg.

Technical Specifications

Lifting Height 3.0 ~ 30.0 meters
Vertical Speed 0.5 ~ 1.5 m/s (Adjustable VFD)
Rated Payload ≤ 2000 kg per carriage
Carriage Deck Integrated Pallet Roller or Chain Conveyor
Drive Mechanism SEW Helical-Bevel Hoist Motor with Counterweight / Heavy Leaf Chains
Positioning Accuracy ± 2.0 mm (Laser Distance Telemetry)
Safety Systems Instant-Arrest Fall Safety Brakes, Parachute Catches, Interlocked Safety Gates
Reciprocating Vertical Conveyor
Vertical Elevators

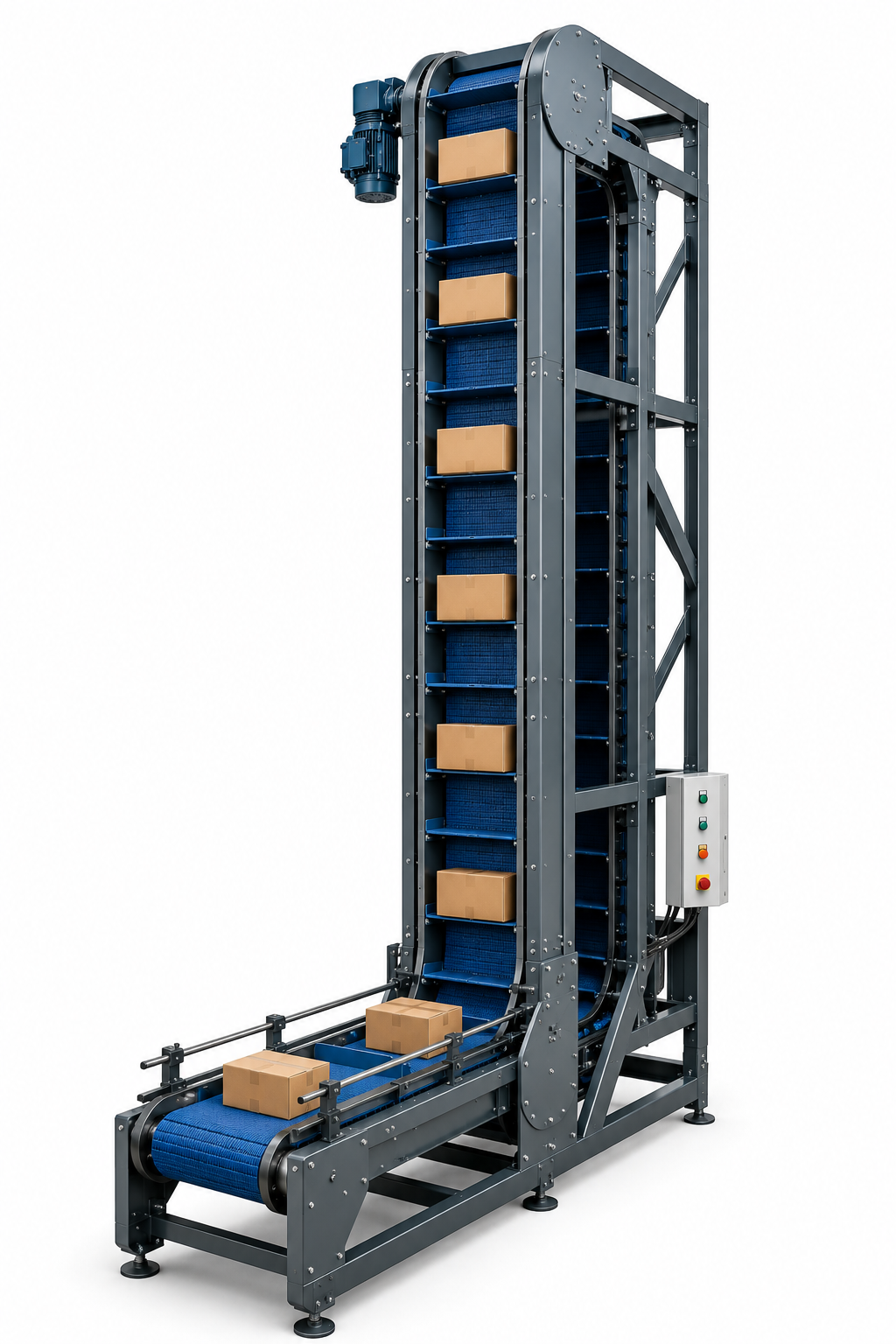

Continuous Vertical Conveyor (CVC)

Continuous circular platform elevator for high-volume carton and tote elevation up to 1,500 items per hour.

Technical Specifications

Throughput Capacity 800 ~ 1500 cartons/hour
Vertical Speed 0.5 ~ 1.0 m/s (Continuous circulation)
Lift Height 3.0 ~ 20.0 meters
Payload Capacity ≤ 50 kg per platform (Custom builds up to 100 kg)
Carriage Configuration C-Type (Same side in/out) / S-Type (Opposite side in/out) / Z-Type
Drive Unit High-Efficiency Helical Gearmotor with 4-Strand Matched Precision Chains
Safety Enclosure Full Structural Mesh Enclosure with Integrated Infeed Light Curtains
Continuous Vertical Conveyor (CVC)
Vertical Elevators

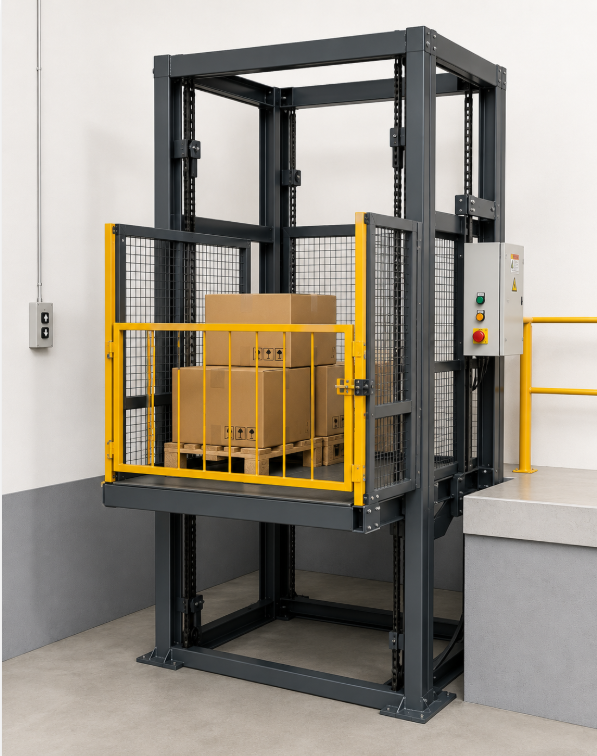

Mini Lift

Compact vertical lifter designed for workstation tote infeed, ergonomic packing heights, and low-profile conveyor loops.

Technical Specifications

Lifting Height 0.3 ~ 2.0 meters
Rated Payload ≤ 300 kg
Vertical Speed 0.3 ~ 0.8 m/s (Rapid cycle time)
Actuation Mechanism Servo-Driven Timing Belt / Precision Ball Screw / Low-Noise Electric Screw
Platform Deck Integrated 24V MDR Roller Deck or Low-Friction Ball Table
Footprint Ultra-Compact Slim-Line Frame (Fits within conveyor footprint)
Positioning Accuracy ± 1.0 mm (Closed-loop encoder control)
Mini Lift
Robotics & Vision

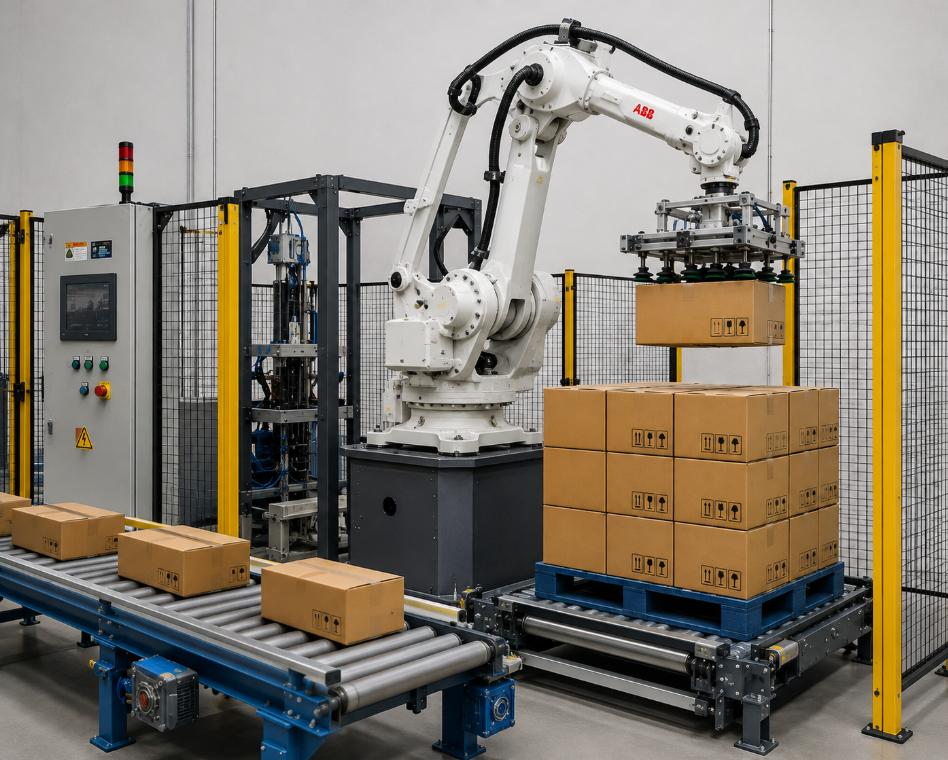

Robot Palletization

High-speed articulated robot arm stacking with 2.5 m/s velocity and ±1mm accuracy for 24/7 continuous industrial packaging lines.

Technical Specifications

Linear Velocity (X/Y) 2.5 m/s
Linear Velocity (Z) 1.5 m/s
Repeatability Accuracy ± 1.0 mm (ISO 9283)
Payload Capacity 50 kg ~ 500 kg (Including custom EOAT tooling)
Robot Kinematics 4-Axis Dedicated Palletizing / 6-Axis Articulated Robot Arm
Throughput Speed Up to 1,200 ~ 1,800 cycles/hour (Multi-pick EOAT)
End-of-Arm Tooling (EOAT) High-Flow Vacuum Grid / Pneumatic Clamp / Mechanical Fork / Magnetic Gripper
Safety Standards ISO 10218-1/2, ISO 13849-1 Cat 4 / PL e Safety Circuitry
Robot Palletization
Robotics & Vision

Gantry Palletization

Overhead Cartesian gantry frame designed for wide-span multi-pallet sorting, extreme payloads, and multi-line production facilities.

Technical Specifications

Linear Velocity (X/Y) 1.5 m/s
Linear Velocity (Z) 1.0 m/s
Repeatability Accuracy ± 3.0 mm
Payload Capacity 100 kg ~ 1000+ kg (Heavy structural payload)
Kinematic Architecture 3-Axis / 4-Axis Overhead Cartesian Gantry Frame
Span Coverage X-Span up to 30m, Y-Span up to 12m, Z-Stroke up to 3.5m
Multi-Station Handling Simultaneous Palletizing across up to 8 Production Infeeds
Drive System Precision Helical Rack-and-Pinion with AC Synchronous Servomotors
Gantry Palletization

Require Custom Conveyor Dimensions?

All Autorise Empowers conveyors and four-way shuttle grids are fully customizable in length, width, speed, load rating, and cold storage specifications.
